How to Choose SMD, GOB, and COB: A Comprehensive Guide for the Best Customer Experience in the LED Display Industry

What is SMD, GOB and COB

First, these three options are all packaging technologies in the LED display industry.

SMD, full name Surface-Mount Device, is the most common packaging method in the LED display industry. As shown in the figure below, the SMD LED display is made by directly soldering the LED lamp beads on the PCB panel, and the lamp beads are exposed outside.

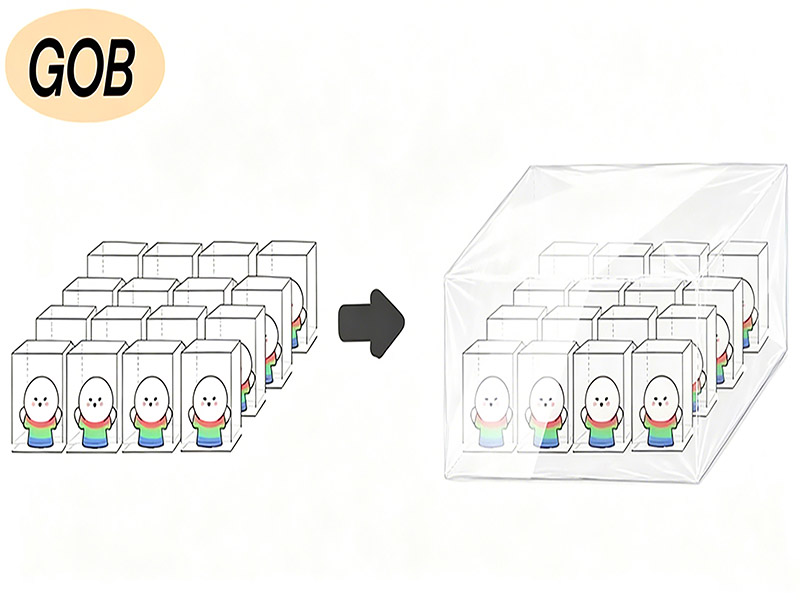

GOB, full name Glue-on-Board, is an upgraded version of SMD. As shown in the figure below, GOB is a layer of glue covered on the surface based on SMD technology. This glue is a special packaging glue composed of thermosetting addition reaction type A/B modified silicone resin, which is not easy to bubble and has a transparency of more than 92%.

COB, full name Chip-on-Board, is an upgraded version of GOB and a double upgraded version of SMD. COB upgrades the light source based on GOB technology. GOB is illuminated by LED lamp beads, while COB is upgraded to LED light-emitting chips. Compared with SMD, COB not only upgrades the LED light-emitting chips, but also covers the surface with packaging glue.

See here, I believe you already have an intuitive understanding of these three technologies. Below I will introduce their respective advantages.

The advantages of SMD COB GOB

SMD LED Display: Advantages of Mature Technology for Indoor Outdoor Event

SMD (Surface-Mount Device) technology has been a key player in the LED display industry since its introduction around 2002. Its mature and stable process makes it one of the most reliable and cost-effective options for LED displays. Thanks to its open lamp bead structure, SMD displays boast excellent heat dissipation and longer service life, perfect for projects that require long-term stability.

One of the major benefits of SMD technology is its ease of maintenance. In the event of a failure, SMD displays are easy to repair and replace, making them a practical option for first-time users or businesses seeking an affordable solution. If you’re looking for a cost-effective and easily repairable LED display, SMD is the ideal choice for beginners and those entering the world of LED displays.

GOB LED Display: The Ultimate in Durability

GOB (Glue-on-Board) technology was developed to tackle the issue of LED lamp bead protection. This innovative technology uses a special optical thermal conductive nano-filling material, which provides a superior protective layer over traditional SMD LEDs. This results in exceptional durability that is resistant to water, impact, dust, corrosion, and static.

If your business focuses on event planning, advertising, or LED screen rentals for outdoor events such as concerts, festivals, or weddings, you’ll need LED displays that can endure constant handling and environmental exposure. The GOB technology ensures protection against accidental bumps, wear, and tear, making it an excellent choice for high-traffic environments. Its high-level protection reduces the need for frequent maintenance, saving both time and money in the long run.

COB LED Display: Unmatched Clarity and Ultra HD Performance for Indoor Led Video Wall

COB (Chip-on-Board) packaging technology represents the latest innovation in LED displays. By directly mounting multiple LED chips onto the PCB and sealing the entire module, COB displays eliminate the need for brackets and further reduce the pixel pitch of LED displays. This breakthrough makes COB the go-to technology for high-definition screens, especially those with small pixel pitches like P1.25, P0.93, and P0.78.

Compared to SMD and GOB, COB technology offers crystal-clear picture quality with no graininess, making it the perfect solution for indoor environments such as control rooms, conference centers, museums, and home theaters. Its soft and precise visuals reduce eye fatigue, delivering a superior viewing experience. If you’re aiming for ultra-high-definition and want the best in LED display technology for short viewing distances, COB technology is your best option

Quick Comparison: COB vs. GOB vs. SMD

In-Depth Comparison: COB vs. GOB vs. SMD

1. Durability and Protection

<!--[if !supportLists]-->· <!--[endif]-->COB: Naturally durable because the chips are encapsulated together.

<!--[if !supportLists]-->· <!--[endif]-->GOB: Offers the highest level of protection against dust, moisture, and impact.

<!--[if !supportLists]-->· <!--[endif]-->SMD: More vulnerable to environmental conditions unless supplemented with external protection.

Winner: GOB for outdoor/harsh environments; COB for rugged indoor settings.

2. Image Quality and Visual Performance

<!--[if !supportLists]-->· <!--[endif]-->COB: Exceptional for close-up viewing; almost no visible pixel gaps.

<!--[if !supportLists]-->· <!--[endif]-->GOB: Very good, although the glue layer may slightly diffuse the image.

<!--[if !supportLists]-->· <!--[endif]-->SMD: Provides excellent brightness and color fidelity, especially from a distance.

Winner: COB for premium, close-range displays; SMD for large-format outdoor signs.

3. Heat Management

<!--[if !supportLists]-->· <!--[endif]-->COB: Superior heat dissipation, which prolongs lifespan and improves energy efficiency.

<!--[if !supportLists]-->· <!--[endif]-->GOB: Similar to SMD, though the glue layer can sometimes trap heat.

<!--[if !supportLists]-->· <!--[endif]-->SMD: Requires effective cooling solutions in high-brightness applications.

Winner: COB

4. Cost

<!--[if !supportLists]-->· <!--[endif]-->COB: Generally more expensive due to higher manufacturing complexity.

<!--[if !supportLists]-->· <!--[endif]-->GOB: Mid-range; slightly more costly than basic SMD due to additional protective layers.

<!--[if !supportLists]-->· <!--[endif]-->SMD: Usually the most budget-friendly option.

Winner: SMD for cost-efficiency.

5. Maintenance and Repairability

COB modules require specialized tools or full module replacement if a chip fails, unlike SMD where individual LEDs can often be replaced.

<!--[if !supportLists]-->· <!--[endif]-->COB: Harder to repair individual LEDs due to the integrated chip structure.

<!--[if !supportLists]-->· <!--[endif]-->GOB: Repairable but trickier due to the glue layer.

<!--[if !supportLists]-->· <!--[endif]-->SMD: Easier to replace individual modules or diodes.
