Integrated Solution for Brand-Wall & Conference-Wall LED Displays

Visualeader Core Advantages of Brand-Wall and Conference-Wall LED Displays

Visualeader has deep expertise in indoor fine-pitch LED products. For corporate brand display and business office-meeting scenarios, we deliver integrated display solutions suitable for reception-area brand walls, exhibition halls, meeting rooms and lecture halls, fully matching real-world corporate office requirements.

1.Ultra-clear image quality for both brand presentation and conference use Adopt high-end fine-pitch packaging with 3000:1 high contrast ratio and accurate color reproduction to faithfully render corporate LOGOs and promotional videos. With refresh rate ≥ 3840 Hz, it produces moiré-free and flicker-free footage for photo-taking, conference live-streaming and recording. Stepless brightness adjustment adapts to varied indoor lighting conditions and eliminates glare for greater viewing comfort over extended periods.

2.Integrated cabinets compatible with diverse office renovations Slim, lightweight die-cast-aluminum front-service cabinets support multiple installation modes: recessed embedding, wall-mounting and floor-standing brackets. The neat appearance blends seamlessly with interior finishes. No rear-side service clearance is required, making the product ideal for space-constrained offices and applicable for both new projects and retrofits.

3.Dual-purpose screen with intelligent convenient control Our self-developed playback-control system supports automatic mode switching by schedule. During working hours, the screen serves conference needs including screen casting, multi-window split display and remote video conferencing. Outside business hours, it plays corporate cultural promotional materials. Operations are available via mobile phones, PCs or tablets; ordinary staff can quickly update content, switch signals and power the screen on/off.

4.Reliable protection and low operation-maintenance costs GOB/COB protected modules resist moisture, dust and collisions for long-duration operation. Intelligent energy-saving power supplies automatically adjust power consumption, delivering a total service life up to 60 000 hours. Hot-swap replacement of individual modules from the front side is supported without disassembling the whole screen, cutting later-stage maintenance time and costs and enabling stable 7×24-hour operation.

5.Rich interfaces with high compatibility for office equipment Connectable with office peripherals such as wireless screen-casting devices, video-conference terminals, central-control systems and audio equipment. Multiple HDMI, DP and USB signal inputs ensure smooth signal switching without black-outs. It supports 4K input and output, window roaming and picture scaling to satisfy reporting, training and multi-party collaborative meetings.

6.One-stop full-project service Full-range services include site survey, solution design, structural drawing generation, installation & commissioning, color calibration, operator training and after-sales inspection. Optimized selection for office-use scenarios avoids risks from improper component selection or mismatched interior finishes. Itemized transparent quotations and technical support guarantee long-term stable equipment operation.

I. Solution Overview

Corporate brand walls (reception-hall / exhibition-hall image walls) and conference walls (meeting rooms, lecture halls, multi-function halls) constitute core application scenarios for indoor fine-pitch LED displays. Brand walls focus on corporate image presentation, cultural promotion and visitor reception. Conference walls mainly support meeting presentations, PPT demonstrations, video conferences, remote collaboration and data-chart display.

Traditional projectors suffer from washed-out images under ambient daylight. LCD video walls are segmented by physical splicing seams. Conventional televisions are limited in maximum size. Fine-pitch LED displays deliver seamless full-screen visuals, precise color reproduction and excellent close-range image quality, while blending aesthetically with interior decoration. They have become the mainstream display solution for modern corporate office spaces.

This solution covers requirement analysis, hardware selection, system architecture, installation structures, content-related functions, construction-acceptance procedures and operation-maintenance guarantees. Differentiated configurations are provided for brand walls and conference walls. Dual-purpose operation is also supported: large conference-room screens can display corporate brand-culture content during non-meeting periods.

II. Scenario-Based Requirement Analysis

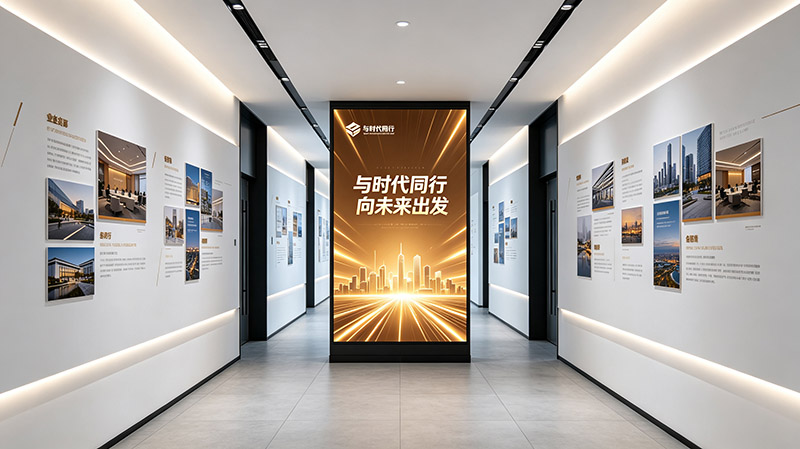

2.1 Brand-Wall LED Displays (Reception Lobby, Exhibition-Hall Foyer)

Application scenarios: corporate front desks, lobbies, exhibition-hall entrances and reception halls for visiting clients and guests.

1.Core purposes: Play corporate LOGOs, promotional videos, corporate culture content, development history, honor credentials, product case studies and welcome slogans; enable cyclic playback of images and short videos.

2.Environmental features: Viewing distance 1-4 m; highly variable indoor lighting combining natural light from floor-to-ceiling windows and artificial lamps; high requirements for visual integration with interior finishes; long-hours standby cyclic playback demanding consistent color performance and low glare.

3.Pain points: Zero visible grain at close viewing distances; visual harmony with interior design; convenient remote updating of promotional content; stable long-time operation and low light decay.

2.2 Conference-Wall LED Displays (Small-to-Large Meeting Rooms, Lecture Halls)

Application scenarios: executive meeting rooms, medium-sized meeting rooms, large lecture halls and multi-function training rooms.

1.Core purposes: Display PPT documents, tables and charts; enable video conferencing, remote connection, proposal reporting, annual-event speeches and training sessions; support multi-source signal switching and multi-window split-screen display.

2.Environmental features: Audience viewing distance 3-10 m; complex indoor lighting; frequent on-site photo- and video-recording via mobile phones and cameras; connectivity requirements for conference terminals, wireless screen-casting devices and central-control systems.

3.Pain points: Sharp rendering of texts and charts; flicker-free and moiré-free output; smooth signal switching; compatibility with various conference equipment; simple operation accessible to non-technical personnel.

2.3 Dual-Purpose Screen Mode (Recommended)

LED screens in meeting-room premises operate as conference walls during meeting sessions and automatically switch to brand-promotion content (corporate promotional videos, cultural posters) outside meeting hours to maximize equipment value.

III. Core Hardware Selection Parameters

For indoor fine-pitch LED, prioritize front-service cabinets requiring no rear-side maintenance clearance, ideal for office-renovation scenarios. COB/GOB protection technology delivers collision resistance, moisture-proof and dust-proof performance to reduce failure risks.

3.1 Pixel-Pitch Selection Reference

3.2 Key Performance Indicators

1.Brightness: 500-800 cd/㎡ for general indoor environments; 700-1000 cd/㎡ recommended for zones near windows with strong daylight. Stepless brightness adjustment prevents glare and ensures visual comfort.

2.Refresh Rate: ≥ 3840 Hz, delivering ripple-free and flicker-free capture by mobile-phone cameras and stable visuals for video conferences.

3.Contrast Ratio: ≥ 3000:1 for deep black levels and accurate color reproduction, preserving original colors of corporate LOGOs and charts.

4.Protection: GOB/COB packaging recommended for indoor modules to resist collisions, moisture and dust; IP30-IP40 indoor protection rating.

5.Cabinets: Die-cast-aluminum front-service cabinets with slim-light form factor; support hot-swap replacement of individual modules from front without whole-screen disassembly.

3.3 Overall System Architecture

The complete system consists of five major parts: LED display panel, video-processing controller, control system, supporting peripherals, power-distribution and mechanical structures.

1.LED Panel Modules & Cabinets: Display hardware carriers adopting die-cast-aluminum front-service cabinets.

2.Video Processor: Multiple HDMI, DP and USB inputs; supports window roaming, simultaneous-multi-display, picture scaling and seamless signal switching; 4K-capable input and output.

3.Control System (Sending card + Receiving cards + Playback-control software)  - Brand-wall mode: scheduled cyclic material playback, group management and remote program updates.  - Conference-wall mode: signal access for PCs, laptops and video-conference hosts; multi-device screen-casting via wireless adapters.

4.Supporting Peripherals  - Intelligent central-control: one-touch power-on/off, signal switching and brightness adjustment via tablet or mobile phone.  - Video-conference terminals, high-definition cameras, microphone arrays.  - Audio power amplifiers and loudspeakers.

5.Power-Distribution System: Intelligent PLC power-distribution cabinet with staged power-on, over-current and short-circuit protection and delayed power-on/off functions to safeguard screen power supplies.

IV. Installation-Structure Solutions

Three mainstream installation options according to office-renovation conditions:

1.Recessed Embedded Installation (Preferred for Premium Brand Walls) The screen sits flush within a pre-reserved wall opening for high visual integrity. Front-service cabinets are mandatory as no rear-side service space is needed. Heat-dissipation ventilation channels shall be reserved and all cables concealed. Suitable for reception lobbies and high-end meeting rooms.

2.Wall-Mounted Installation Steel-structure hanging fixtures are fixed onto load-bearing solid walls. The display sits closely against the wall. All maintenance operations are performed from the front side for front-service cabinets. Suitable for most meeting-room environments; wall load-bearing capacity must be verified.

3.Floor-Standing Bracket Installation Custom-fabricated steel floor-standing brackets eliminate wall-load-bearing requirements. Suitable for temporary multi-function spaces and retrofit projects where walls cannot bear loads.

Wiring Specification: Separate strong-current and weak-current cabling; adopt national-standard flame-retardant power cables; deploy fiber-optic transmission for long-distance signal runs; reserve spare signal cables and power interfaces for future expansion.

V. Scenario-Specific Function Design

5.1 Functions of Brand-Wall LED Displays

1.Multi-media cyclic playback: Loop images, corporate promotional videos, posters, welcome texts and dynamic LOGOs; support scheduled time-segment playback.

2.Remote content management: Managed by LAN-connected PCs; materials can be updated remotely over intranet without repeated USB-drive file transfers.

3.Multi-format compatibility: Support images, short videos and documents; holiday-themed welcome screens can be configured.

4.Low-power standby mode: Reduce brightness during off-hours and enable scheduled power-on / power-off.

5.2 Functions of Conference-Wall LED Displays

1.Seamless multi-signal switching: One-touch switching between laptops, desktops, video-conference terminals and USB-drive sources without black-outs or flicker.

2.Wireless screen-casting: Wireless projection from mobile phones and PCs; up to four signal sources can be displayed in split windows simultaneously.

3.Remote video conferencing: Interface with mainstream video-conference terminals to render remote participant video feeds and documents on the large screen.

4.Multi-window roaming display: Show participant camera feeds alongside PPT content with freely resizable and movable windows.

5.Integrated intelligent central-control: One-tap control via tablet for screen power-on/off, volume adjustment, signal-source selection and brightness tuning to lower operational barriers.

5.3 Dual-Purpose-Screen Functions (For Meeting-Room Large Screens)

Switch to conference mode during working-day meeting sessions; automatically activate brand-promotion mode after work and on weekends to play corporate-culture promotional videos. Automatic scheduled task execution enables mode transition without manual intervention.

VI. Comparison With Traditional Solutions

VII. Project Implementation Process

1.On-Site Survey: Measure wall dimensions, wall load-bearing capacity, viewing distances, ambient lighting and strong-/weak-current connection points; confirm renovation progress and finalize installation mode.

2.Solution Refinement: Confirm screen dimensions, pixel pitch and cabinet specifications; generate structural, cabling and power-distribution drawings.

3.Production & Stock Preparation: Manufacture modules, cabinets, control systems, power-distribution cabinets and auxiliary devices.

4.On-Site Construction: Install steel structures / embedded parts; lay strong- and weak-current cables; mount cabinets, assemble modules and complete system wiring and commissioning.

5.Calibration & Commissioning: Perform full-screen brightness-and-color consistency calibration; configure program playback, screen-casting and central-control functions; set scheduled tasks.

6.Project Acceptance: Test image performance, signal switching and all functional modules; deliver documentation and conduct operator training for the client’s staff.

7.After-Sales Operation-Maintenance Handover: Supply equipment manuals, software and spare-parts lists; clarify warranty coverage.

VIII. Common Risks & Precautions

1.Avoid blind pursuit of the smallest pixel pitch: Select parameters matching actual viewing distances to prevent budget waste.

2.Prioritize front-service cabinets: Most office premises lack rear-side service access; rear-service cabinets will hinder later-stage maintenance.

3.Glare control: Avoid excessive brightness for meeting-room deployment; enable automatic brightness adjustment to prevent visual fatigue for attendees.

4.Co-ordination with interior renovation: For recessed-embedded projects, synchronize with building-renovation workflows; confirm opening dimensions and heat-dissipation ventilation requirements in advance.

5.Signal redundancy: Reserve spare signal cables to avoid complete screen failure caused by single-line faults.

6.Power-distribution protection: Deploy earth-leakage and overload protection with staged power-on to prevent instantaneous surges from damaging power supplies.

IX. Operation-Maintenance Guarantee Plan

1.Hardware Warranty: Standard warranty coverage for modules, power supplies and receiving cards; consumable spare parts are provided.

2.Remote Operation-Maintenance: Monitor screen operating status over local area network, diagnose faults remotely and revise playback programs.

3.Periodic Inspection: Optional annual inspection service checking wiring connections, heat dissipation and brightness decay.

4.Operator Training: Train client-side staff on basic operations including material import, signal switching and power-on / power-off procedures.

X. Solution Summary

Fine-pitch LED displays for brand walls and conference walls build a premium modern corporate image and enhance visitor reception experience, while satisfying internal-meeting and remote collaborative-office demands. Prioritize front-service die-cast-aluminum cabinets and select appropriate pixel pitches according to real-world viewing distances. Recessed-embedded or wall-mounted installation achieves visual integration with interior finishes. Dual-purpose-screen operation maximizes return on equipment investment.
